Oval Cores of EMC Test

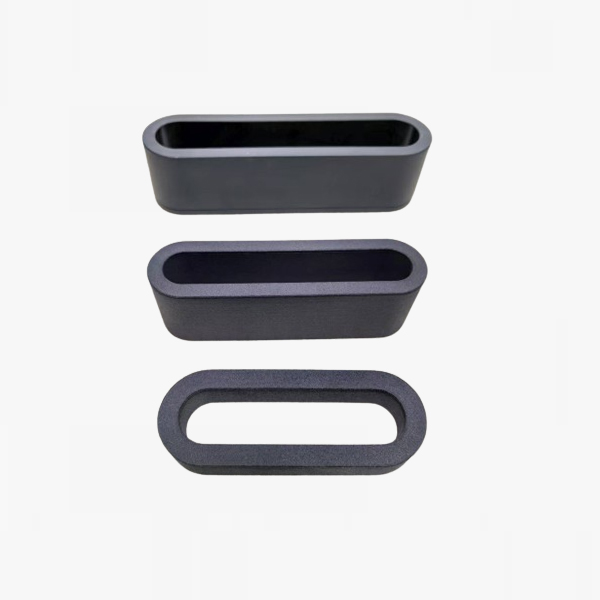

Whether it is wind power, thermal power generation, or new energy vehicle motor drive work will encounter harmonic current interference, these interferences are mainly in the form of common mode interference, electrical corrosion of the motor bearings, affecting the efficiency and life of the drive system, with nanocrystalline coiled oval common-mode magnetic ring can be an effective solution to the problems encountered in this regard. Nanocrystalline material itself has the advantages of high permeability, high magnetic induction strength, good temperature stability, compared with the traditional ferrite ring, common mode magnetic ring made of nanocrystalline material has the advantages of high inductance, high impedance, easy to produce, easy to install and so on.

Core information:

All below listed cores are inserted in PET or PPS cases and fixed with silicon rubber to achieve good magnetic property and good mechanical protection. Our plastic cases are suitable for direct winding.Epoxy coated core design is available on the further request.



Material data of AM-EMC-XXX :

Saturation flux density..........1.25T

Specific electrical resistance… 130μΩ-cm

Curie temperature…… 560 °C

Continuous operation ……     155 °C

Permeability μ (at 10 kHz): >30 000

Permeability u(at100kHz): >12000

产品描述
Product Description

Specifications:

 Part/number

Case dimensions(mm)

A/  B/  C/  D/  H

effective  core cross-section

A Fe (cm²)

Mean  core  path  length

L Fe ( cm)

AL - value  uH

AL (10 kHz)

AL - value  uH

AL (100 kHz)

AM-EMC-123*48*10*20

123*103*48*28*25

0.94

26.9

13uH

5.2uH

AM-EMC-136*42*9*10

136*118*42*25*14.5

0.35

29.3

4.5uH

1.8uH

AM-EMC-155*41*9*40-C

152*139*38*26*42

1.4

32.8

16uH

6.4uH

AM-EMC-160*50*11*20

160*137*50*28*25

1.1

34.2

12uH

4.8uH

AM-EMC-160*52*13.5*20-C

157*135*49*28*22

1.48

34

16.5uH

6.5uH

AM-EMC-171*53*15*8

171*140*53*23*13

0.68

35.5

7.5uH

2.8uH

AM-EMC-184*47*9.5*40-C

181*166*44*31*42

2.4

39.4

15uH

6.1uH

AM-EMC-304*55*11*25-C

301*275*52*28*27

2.6

62.6

12uH

4.7uH

Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
