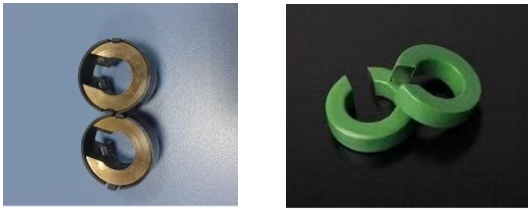

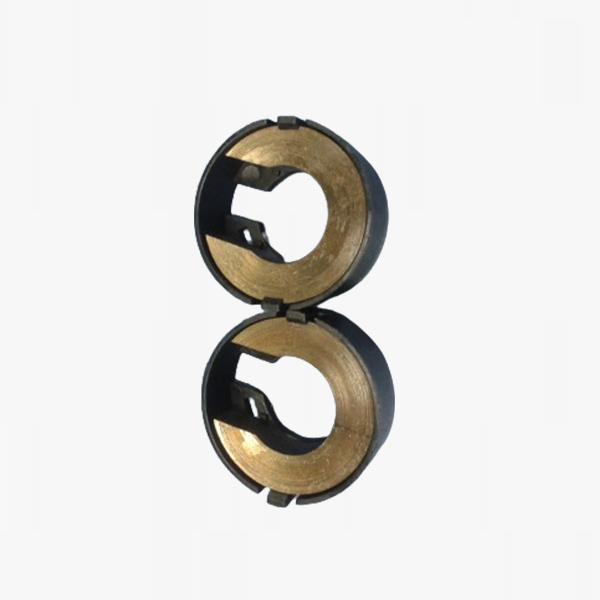

Toroidal Amorphous Cores

Applications:

Noise suppression in car audio devices.

Choke coils for DC/DC converters.

Normal mode choke coils.

Output smoothing choke coils for SMPS.

Features:

Lower core loss at high frequency enabling low temperature rise.

No leakage magnetic flux due to gapless structure.

Excellent DC bias characteristics.

High magnetic permeability range from 250 to 1200, which lead to the reduction in number of turns

Standard Material Characteristics:

Material

Iron-based amorphous alloy

Saturation Flux Density  Bs (T)

1.56

Initial Permeability ( μ0 )

250~1200

Coercive Force     Hc (A/M)

4

Curie Temperature  (0C)

410

Mass Density   d kg/m3

7.2x103

Product Identification:





AMNXXX

(1) AMMET

(2) iron-base amorphous

(3) Core outer diameter dimension

Specifications of AM-N-XXX series:

Part No.

Finished Dimension

(mm)

Core

Dimension

(mm)

Case

Color

Rated Current

(A)

Turns

of

Winding

L

at 0A

(μH)

AL

at rated

minimum

AM-N-161008

18x8.6x10.5

16x10x8

white

1

28

600±20%

350

AM-N-161010

18×8.6×12.5

16×10×10

white

1

30

1000

250

AM-N-181108

20×9.3×10.5

20×9.3×8

white

1

25

>500

380

AM-N-181110-A

20.5×9.3×12.5

18×11×10

white

1

28

800

480

AM-N-181110-B

20.5×9.3×12.5

18×11×10

white

1

33

830±20%

580

AM-N-181110-C

20.5×9.3×12.5

18×11×10

white

1

38

1100

950

AM-N-201205

22.3x9.9x7.1

20×12×5

white

1

25

>400

300

AM-N-201210

22.2×9.9×12.5

20×12×10

white

1.3

28

755±25%

550



DC BIAS Characteristics:

1,AM-N-201005

2, AM-N-181108



Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
