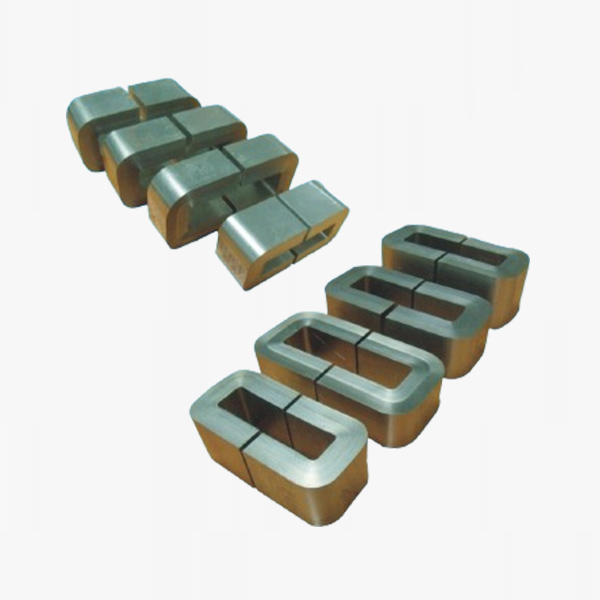

Inductor cores in Solar power, wind energy.
Charging pile, Railway Power.
Output inductor cores in plating, welding, induction heating machine.
Output filter or inductor cores in high frequency large power supplies
High saturate induction－Reducing core volume
Rectangular form－Easy to mount coils
With air gap－Excellent anti-bias current ability
Low core loss－Low temperature rise
Good stability―Can work at -20－150oC
Properties:
|
Saturation flux density |
1.56T |
Hardness Hv |
960kg/mm2 |
|
Curie Temperature |
410°C |
Density |
7.18g/cm3 |
|
Crystallization temperature |
550°C |
Resistivity |
130μΩ-cm |
|
Core-loss @ 16kHz, 37mT |
<1.0w/kg |
  |
Specifications:
|
Part No |
Dimension (mm) |
Cross section (cm2) |
Length (cm) |
mass (g) |
|||||
|
a |
b |
c |
d |
e |
f |
||||
|
AM-C-4 |
9±1 |
10.5 |
32.75 |
15±1 |
28.5 |
51 |
1.1 |
12.7 |
102 |
|
AM-C-6.3 |
10±1 |
11 |
33 |
20±1 |
31 |
53 |
1.6 |
13.1 |
150 |
|
AM-C-8 |
11±1 |
13 |
30 |
20±1 |
35 |
52 |
1.8 |
13.2 |
170 |
|
AM-C-10 |
11±1 |
13 |
40 |
20±1 |
35 |
62 |
1.8 |
15.4 |
200 |
|
AM-C-16A |
11±1 |
13 |
40 |
25±1 |
35 |
62 |
2.3 |
15.1 |
250 |
|
AM-C-16B |
11±1 |
13 |
50 |
25±1 |
35 |
72 |
2.3 |
16.9 |
280 |
|
AM-C-20 |
11±1 |
13 |
50 |
30±1 |
35 |
72 |
2.7 |
17.5 |
340 |
|
AM-C-25 |
13±1 |
15 |
56 |
25±1 |
41 |
82 |
2.7 |
19.6 |
380 |
|
AM-C-32 |
13±1 |
15 |
56 |
30±1 |
41 |
82 |
3.2 |
20 |
460 |
|
AM-C-40 |
13±1 |
15 |
56 |
35±1 |
41 |
82 |
3.7 |
20 |
530 |
|
AM-C-50 |
16±1 |
20 |
70 |
25±1 |
52 |
102 |
3.3 |
24.9 |
590 |
|
AM-C-63 |
16±1 |
20 |
70 |
30±1 |
52 |
102 |
3.9 |
25.3 |
710 |
|
AM-C-80 |
16±1 |
20 |
70 |
40±1 |
52 |
102 |
5.2 |
25.4 |
950 |
|
AM-C-100 |
16±1 |
20 |
70 |
45±1 |
52 |
102 |
5.9 |
25.4 |
1065 |
|
AM-C-125 |
19±1 |
25 |
83 |
35±1 |
63+1 |
121 |
5.5 |
28.5 |
1163 |
|
AM-C-160 |
19±1 |
25 |
83 |
40±1 |
63 |
121 |
6.5 |
28.5 |
1330 |
|
AM-C-200 |
19±1 |
25 |
83 |
50±1 |
63 |
121 |
7.8 |
29.8 |
1660 |
|
AM-C-250 |
19±1 |
25 |
90 |
60±1 |
63 |
128 |
9.3 |
31.4 |
2090 |
|
AM-C-320 |
22±1 |
35 |
85 |
50±1 |
79 |
129 |
9.0 |
32.5 |
2165 |
|
AM-C-400 |
22±1 |
35 |
85 |
65±1 |
79 |
129 |
11.7 |
33.6 |
2816 |
|
AM-C-500 |
25±1 |
40 |
85 |
55±1 |
90 |
135 |
11.2 |
35 |
2890 |
|
AM-C-630 |
25±1 |
40 |
85 |
70±1 |
90 |
135 |
14.3 |
35 |
3680 |
|
AM-C-800A |
25±1 |
40 |
85 |
85±1 |
90 |
135 |
17.4 |
35 |
4470 |
|
AM-C-800B |
30±1 |
40 |
95 |
85±1 |
100 |
155 |
20.9 |
39 |
5975 |
|
AM-C-1000 |
33±1 |
40 |
105 |
85±1 |
106 |
171 |
23 |
42.2 |
7250 |
Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
