Applications:

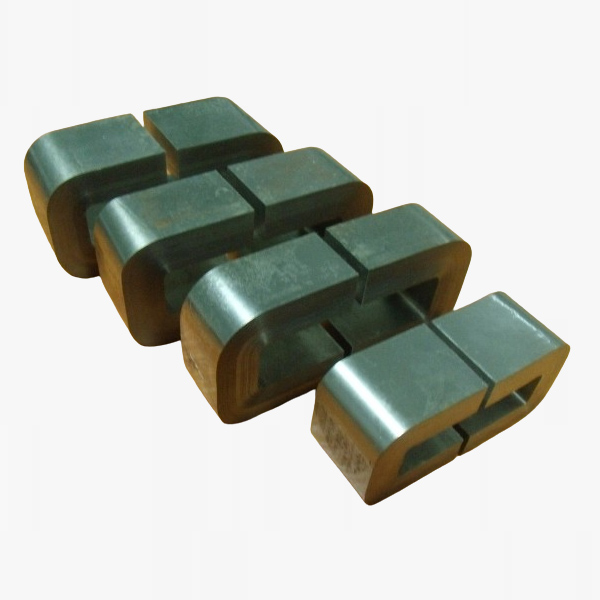

Transformer cores in Medical X-ray, Ultrasound,CT, MRI.
Transformer cores in plating, welding, induction heating machine.
Inductors (choke coils) for solar power, charging station, railway power.
Characteristics:
High saturate induction－Reducing core volume
Rectangular form－Easy to mount coils
Low core loss－Low temperature rise
Good stability―Can work at -20－150oC
Wide frequency－20KHz to 100KHz
Power－1kw to 100kw.
Properties:
|
Saturation flux density |
1.25T |
Hardness Hv |
960kg/mm2 |
|
Curie Temperature |
560°C |
Density |
7.18g/cm3 |
|
Crystallization Temperature |
510°C |
Resistance |
130mW-cm |
|
Core loss@20KHz,300mT |
<16w/kg |
|
Specifications:
|
Part No |
Dimension (mm) |
Cross section (cm2) |
Length (cm) |
mass (g) |
|||||
|
a |
b |
c |
d |
e |
f |
||||
|
AM-NC-6.3 |
10±1 |
11 |
33 |
20 |
31 |
53 |
1.6 |
13.1 |
147 |
|
AM-NC-8 |
11++1 |
13 |
30 |
20 |
35 |
52 |
1.8 |
13.2 |
165 |
|
AM-NC-10 |
11±1 |
13 |
40 |
20 |
35 |
62 |
1.8 |
15.4 |
190 |
|
AM-NC-16A |
11±1 |
13 |
40 |
25 |
35 |
62 |
2.3 |
15.1 |
240 |
|
AM-NC-16B |
11±1 |
13 |
50 |
25 |
35 |
72 |
2.3 |
16.9 |
270 |
|
AM-NC-20 |
11±1 |
13 |
50 |
30 |
35 |
72 |
2.7 |
17.5 |
320 |
|
AM-NC-25 |
13±1 |
15 |
56 |
25 |
41 |
82 |
2.7 |
19.6 |
360 |
|
AM-NC-32 |
13±1 |
15 |
56 |
30 |
41 |
82 |
3.2 |
20 |
435 |
|
AM-NC-50 |
16±1 |
20 |
70 |
25 |
52 |
102 |
3.3 |
24.9 |
565 |
|
AM-NC-63 |
16±1 |
20 |
70 |
30 |
52 |
102 |
3.9 |
25.3 |
688 |
|
AM-NC-56 |
8±1 |
40.5 |
40.5 |
8 |
56 |
56 |
0.5 |
19.4 |
70 |
|
AM-NC-66 |
12±1 |
25 |
42 |
12 |
50 |
66 |
1.3 |
18.4 |
170 |
|
AM-NC-70 |
10±1 |
17 |
51 |
12 |
37 |
70 |
1.02 |
17.6 |
125 |
|
AM-NC-75 |
12±1 |
50 |
52 |
12 |
75 |
75 |
1.3 |
25.4 |
230 |
|
AM-NC-82 |
12±1 |
18 |
29 |
12 |
42 |
82 |
1.2. |
14.2 |
180 |
|
AM-NC-85 |
15±1 |
23.2 |
55.5 |
15 |
53 |
85 |
1.8 |
21.7 |
280 |
|
AM-NC-100 |
20±1 |
60 |
61 |
20 |
100 |
100 |
3.2 |
32.2 |
770 |
|
AM-NC-119 |
12±1 |
65.5 |
95 |
15 |
89 |
119 |
1.4 |
36.9 |
400 |
|
AM-NC-120 |
20±1 |
32.5 |
80 |
20 |
72 |
120 |
3.2 |
30.5 |
710 |
|
AM-NC-130 |
20±1 |
60.5 |
90 |
20 |
100 |
130 |
3.2 |
38.1 |
900 |
|
AM-NC-150A |
25±1 |
55.5 |
100 |
25 |
105 |
150 |
5.0 |
41.1 |
1390 |
|
AM-NC-150B |
25±1 |
78.5 |
100 |
25 |
128 |
150 |
5.0 |
45.7 |
1750 |
|
AM-NC-150C |
25±1 |
78.5 |
100 |
30 |
128 |
150 |
6.0 |
45.7 |
2050 |
|
AM-NC-150D |
20±1 |
45 |
111 |
20 |
85 |
150 |
3.2 |
39.2 |
920 |
|
AM-NC-150E |
25±1 |
62 |
101 |
25 |
112 |
150 |
5.0 |
42.6 |
1590 |
|
AM-NC-150F |
25.8±1 |
66 |
99 |
25 |
118 |
150 |
5.4 |
43.3 |
1690 |
|
AM-NC-166A |
35±1 |
28 |
96 |
35 |
98 |
166 |
10.4 |
35.9 |
2690 |
|
AM-NC-166B |
31±1 |
32 |
104 |
40 |
94 |
166 |
10.5 |
37 |
2810 |
|
AM-NC-170 |
25±1 |
45 |
122 |
25 |
95 |
170 |
5.0 |
43.4 |
1690 |
|
AM-NC-188 |
24±1 |
89 |
141 |
25 |
137 |
188 |
4.8 |
55.6 |
1920 |
|
AM-NC-190A |
25±1 |
40.5 |
141 |
30 |
90 |
190 |
6.0 |
46.1 |
1950 |
|
AM-NC-190B |
25±1 |
76 |
141 |
30 |
126 |
190 |
6.0 |
53.4 |
2330 |
|
AM-NC-190C |
25±1 |
89 |
141 |
25 |
139 |
190 |
5.0 |
56 |
2030 |
|
AM-NC-204 |
32±1 |
76 |
141 |
25 |
140 |
204 |
6.4 |
56.2 |
2560 |
|
AM-NC-280 |
45±1 |
40.5 |
191 |
30 |
130 |
280 |
11.4 |
64.3 |
4916 |
|
AM-NC-320A |
55±1.5 |
40.5 |
211 |
30 |
150 |
320 |
13.9 |
72.3 |
6730 |
|
AM-NC-320B |
55±1.5 |
45 |
211 |
30 |
155 |
320 |
13.9 |
67.9 |
6860 |
|
AM-NC-320C |
50±1 |
60 |
220 |
30 |
160 |
320 |
12.75 |
71.6 |
6570 |
|
AM-NC-330 |
28±1 |
89 |
274 |
70 |
145 |
330 |
16.6 |
78.6 |
9420 |
|
AM-NC-350 |
30±1 |
93 |
290 |
75 |
153 |
350 |
19.1 |
82 |
11280 |
|
AM-NC-412 |
60±1.5 |
90 |
290 |
100 |
210 |
412 |
51 |
94.6 |
34730 |
Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
