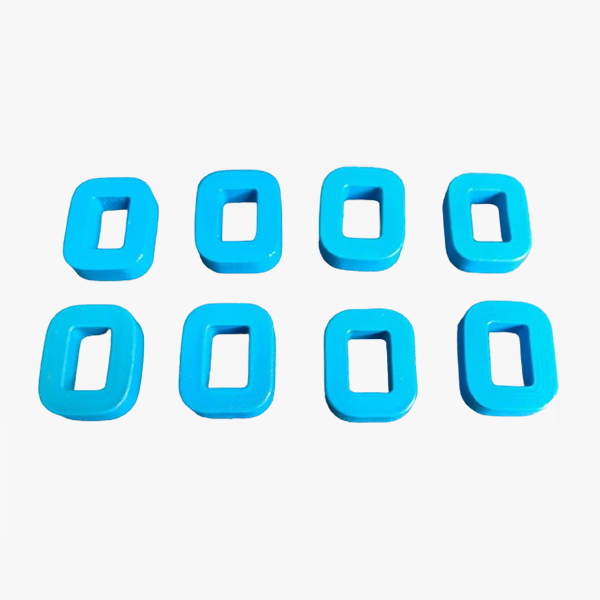

For most of the switching power supply, EV electronic control, electric drive and other power supplies will encounter electromagnetic compatibility (anti-EMI interference) problems, with nanocrystalline coiled common-mode core made of common mode inductor is a very good solution to the problems encountered in this regard. Nanocrystalline material itself has the advantages of high permeability, high magnetic induction strength, high temperature stability, which traditional ferrite does not have, and the flat wire common mode inductor made of nanocrystalline material has the advantages of high inductance, high impedance, small size, and automation of winding.
Core coating information:
Epoxy coated
Good mechanical protection.
Material data of AM-EMC-SQ :
Saturation flux density..........1.25T
Specific electrical resistance… 130μΩ-cm
Curie temperature…… 560 °C
Continuous operation …… 155 °C
Permeability μ (at 10 kHz): >30 000
Permeability u(at100kHz): >12000
Specifications:
|
|

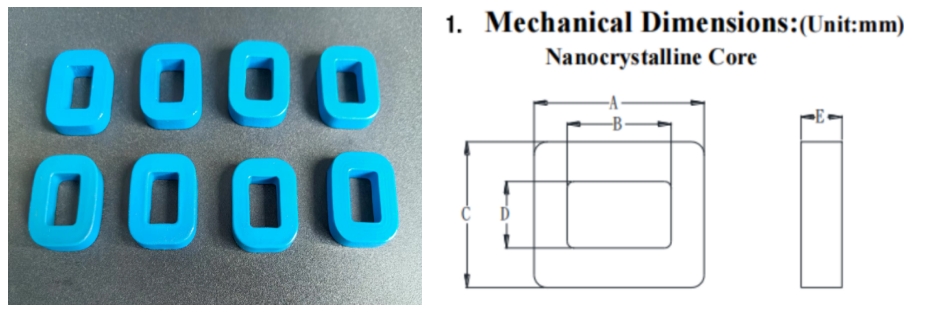

Coating dimensions（mm) A/ B/ C/ D/ E |
Effective core Cross-section A Fe (cm²) |
Mean core Path length L Fe ( cm) |
AL-value uH AL(10 kHz) |
AL- value uH AL (100kHz) |
|
AM-EMC-27*21*6.5-R |
28*15.5*22*10*7.5 |
0.27 |
6.9 |
25uH |
5.2uH |
|
AM-EMC-31*28*6.5-R |
31*15.5*28*12.5*7.5 |
0.35 |
7.8 |
22uH |
6.5uH |
|
AM-EMC-20*20*5-R |
21*10*20*10*6 |
0.3 |
5.7 |
30uH |
7.5uH |
|
AM-EMC-28.5*26.5*6.5-R |
29.5*14.7*27.5*12.7*7.5 |
0.38 |
7.9 |
30uH |
7.0uH |
Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
