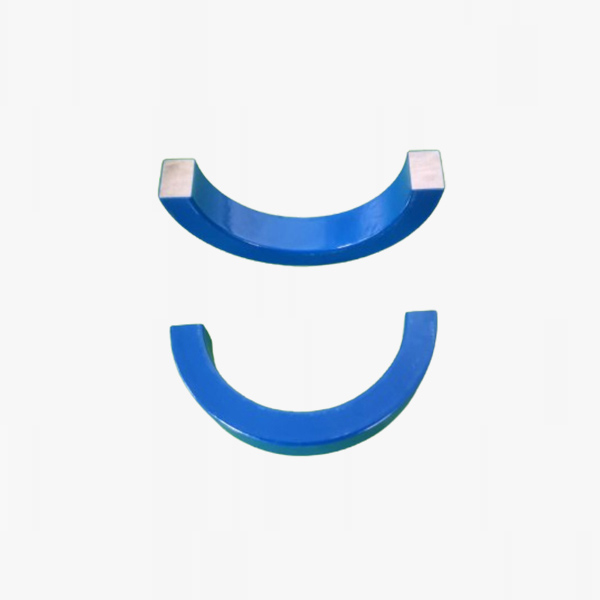

Material Features:
1.Almost no air gap between the cutting surface, higher permeability than silicon steel，permalloy.
2.Very high saturation flux density compared than permalloy, which is used in huge current area;
3.Economical compared with permalloy.
4.Easy to mount.
Standard Material Characteristics:
|
Material |
Iron-based nano-crystalline alloy |
|
Saturation Flux Density Bs (T) |
1.25 |
|
Permeability ( μ) at 0.08 A/m |
80000-200000 |
|
Coercive Force Hc (A/m) |
0.8 |
|
Curie Temperature ( 0C) |
560 |
|
Mass Density d （kg/m3） |
7.2x103 |
Specifications:
|
Coating dimensions (mm) |
|
|||
|
Part number. |
OD |
ID |
H |
u |
|
AM-S-22.41705 |
22.7 |
16.5 |
5.3 |
15000 |
|
AM-S-322408 |
32.7 |
23.7 |
8.5 |
15000 |
|
AM-S-473708 |
48 |
36 |
8.5 |
15000 |
|
AM-S-604010 |
61 |
39 |
11 |
15000 |
|
AM-S-473915 |
47 |
39 |
15 |
15000 |
|
AM-S-595115 |
59 |
51 |
15 |
15000 |
|
AM-S-725715 |
72 |
57 |
15.5 |
15000 |
|
AM-S-755510 |
76 |
54 |
11 |
15000 |
|
AM-S-806010 |
81 |
58 |
11 |
15000 |
|
AM-S-806012 |
81 |
58 |
13 |
15000 |
|
AM-S-976525 |
98 |
63 |
26 |
15000 |
|
AM-S-1008012 |
101 |
79 |
13 |
15000 |
|
AM-S-1015645 |
102 |
55 |
46 |
15000 |
|
AM-S-1119425 |
111 |
94 |
25 |
15000 |
|
AM-S-1157520 |
115 |
75 |
21 |
15000 |
|
AM-S-1157525 |
115 |
75 |
26 |
15000 |
Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
