Material Features:
1.High permeability, which lead to low phase and amplitude error;
2.Very high saturation flux density compared with high permeability;
3.Low core losses which lead to low amplitude;
4.Good temperature stability.
Standard Material Characteristics:
|
Material |
Iron-based nano-crystalline alloy |
|
Saturation Flux Density Bs (T) |
1.25 |
|
Permeability ( μ) at 0.08 A/m |
80000-200000 |
|
Coercive Force Hc (A/m) |
0.8 |
|
Curie Temperature ( 0C) |
560 |
|
Mass Density d （kg/m3） |
7.2x103 |

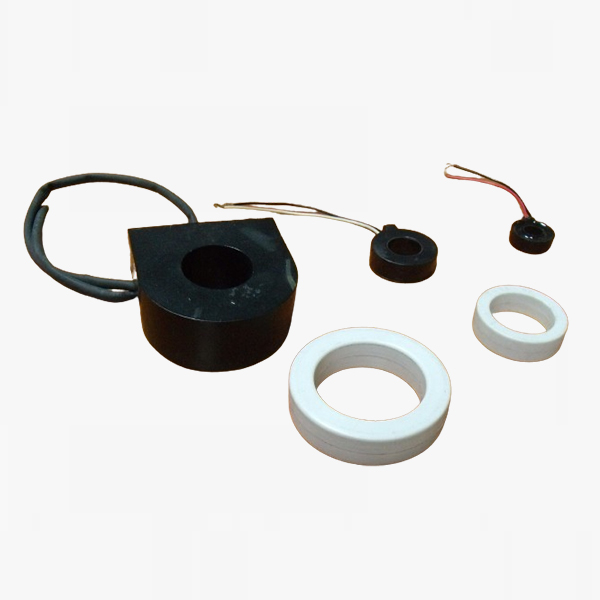

Specifications:
|
Part No |
Case Size (mm) |
Properties |
||||
|
OD |
ID |
H |
N1：N2 |
I。（mA） |
U(mV) |
|
|
AM-CT-21*13*10 |
24 |
11.5 |
13 |
1:1 |
10 |
0.28 |
|
AM-CT-13*10*10 |
15 |
8.5 |
12 |
1:1 |
10 |
0.2 |
|
AM-CT-18*13*5 |
19.6 |
11.6 |
6.4 |
1:1 |
3 |
0.006 |
|
AM-CT-19*14*6.5 |
22.3 |
12.0 |
9.5 |
1:1 |
10 |
0.20 |
|
AM-CT-19*14*8 |
21.6 |
12.0 |
11.0 |
1:1 |
50 |
2.00 |
|
AM-CT-21*13*10 |
24.0 |
11.6 |
13.0 |
1:1 |
6 |
0.15 |
|
AM-CT-21*14*20 |
24.7 |
11.3 |
23.0 |
1:1 |
50 |
9.00 |
|
AM-CT-21*16*6.5 |
24.0 |
14.5 |
9.4 |
1:1 |
10 |
0.07 |
|
AM-CT-21*16*10 |
24.5 |
14.2 |
12.7 |
1:1 |
10 |
0.25 |
|
AM-CT-23*16*10 |
25.0 |
14.1 |
13.0 |
1:1 |
7 |
0.15 |
|
AM-CT-25*19*6.5 |
28.0 |
17.5 |
9.4 |
1:1 |
10 |
0.07 |
|
AM-CT-26*18*10 |
28.9 |
16.6 |
13.0 |
1:1 |
10 |
0.25 |
|
AM-CT-28*18*15 |
31.0 |
15.2 |
17.7 |
1:1 |
4 |
0.12 |
|
AM-CT-34*28*8 |
36 |
25 |
10 |
1:1 |
20 |
0.26 |
|
AM-CT-50*40*10 |
54 |
37 |
14 |
1:1 |
20 |
0.28 |
Attention: All the data listed in this catalogue are got from optimum-annealed samples. When these ribbons are made into cores, there may be some variation of the property according to processing technique. All the data here are only for references, but not for guaranty of any order. Cores with other specifications can be provided concerning to customer’s demand.
